T11S R50W
Kit Carson County, Colorado
Anschutz Seismic Prospect Evaluations
GrayStone Exploration Labs, Inc
Windmill Prospect
Three seismic prospects where evaluated for the Anschutz
Corporation and predictions made before drilling. In each case the
seicmic had identified the Morrow channel cut and the drilling
confirmed the channel. All three were predicted as dry holes prior to
drilling. Both Speaker and East Bledsoe were predicted as dry holes
with shows based on their proximity to small anomalies.
Corporation and predictions made before drilling. In each case the
seicmic had identified the Morrow channel cut and the drilling
confirmed the channel. All three were predicted as dry holes prior to
drilling. Both Speaker and East Bledsoe were predicted as dry holes
with shows based on their proximity to small anomalies.
East Bledsoe Prospect
Speaker Prospect

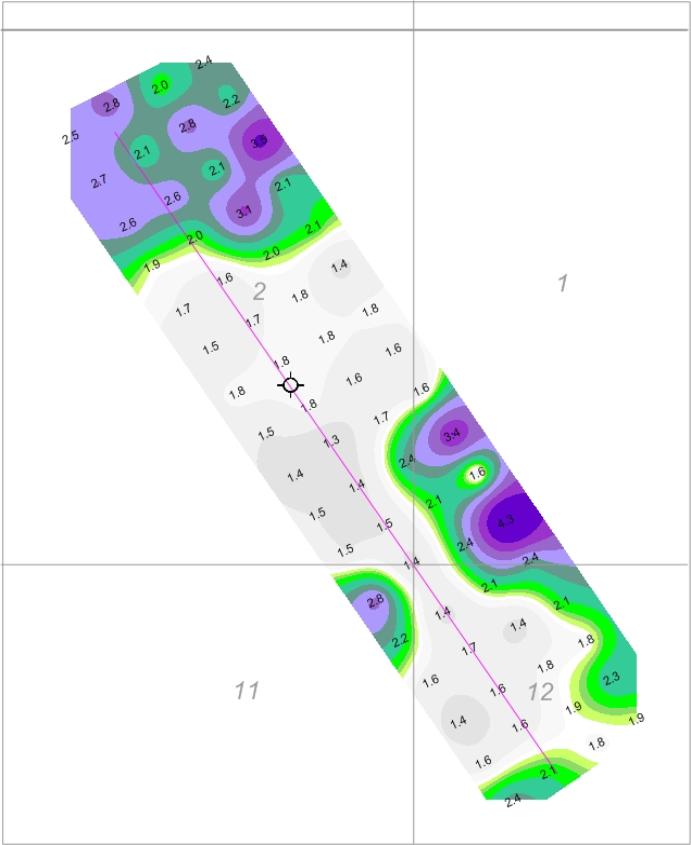

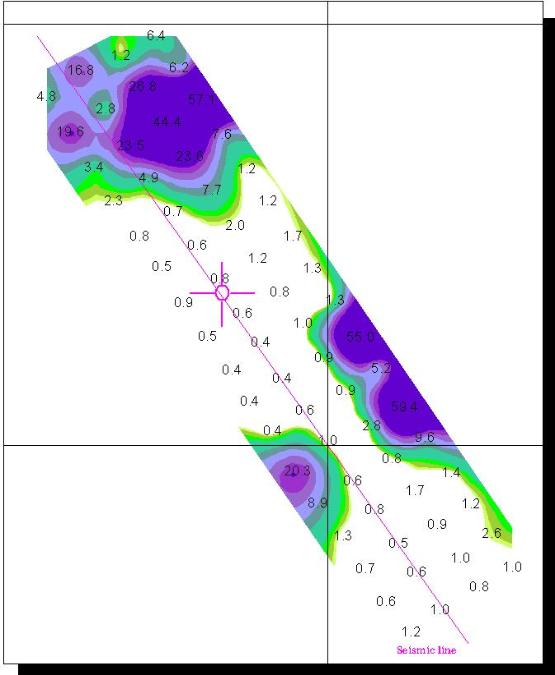

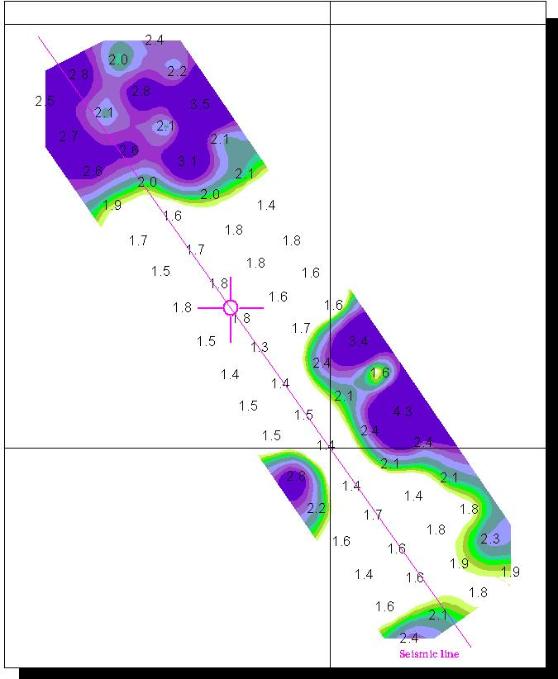

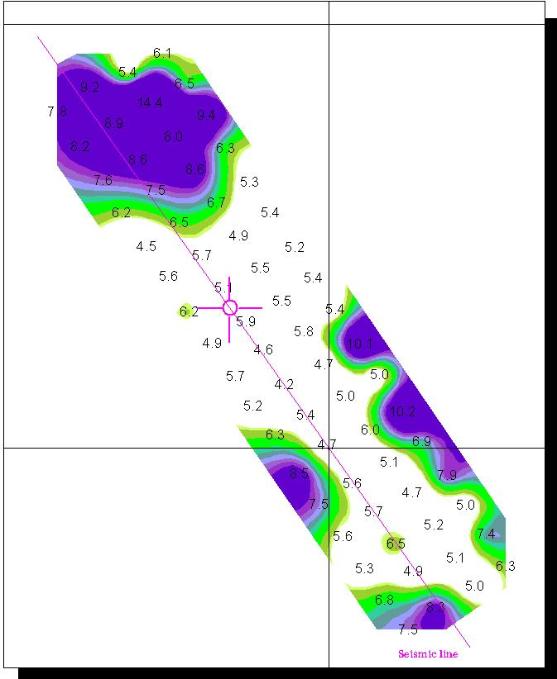

The Windmill prospect well location was not supported by the geochemistry, however, good
locations were identified by this survey.
locations were identified by this survey.

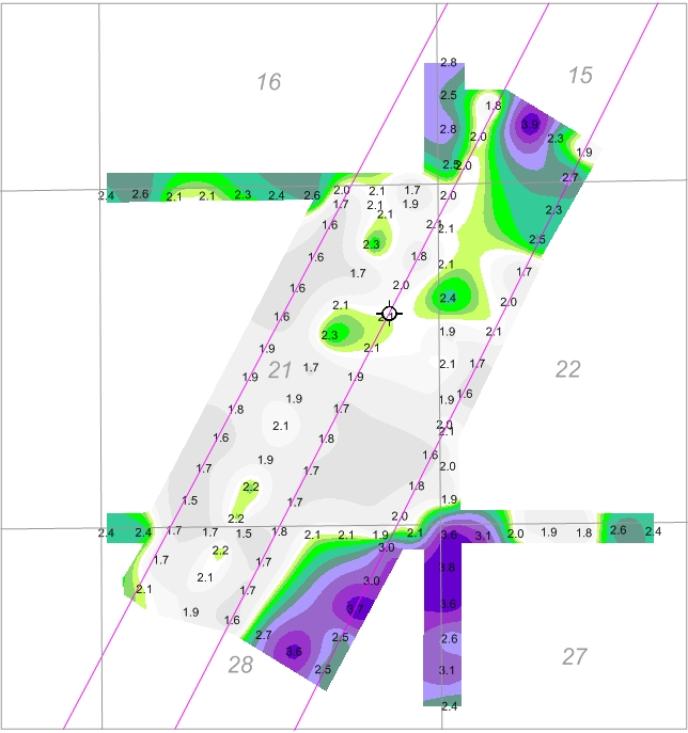

The East Bledsoe Prospect well location has an anomaly that is both small in magnitude and size
but was enough to predict a show well. The dry hole did have a small show in the Morrow.
but was enough to predict a show well. The dry hole did have a small show in the Morrow.

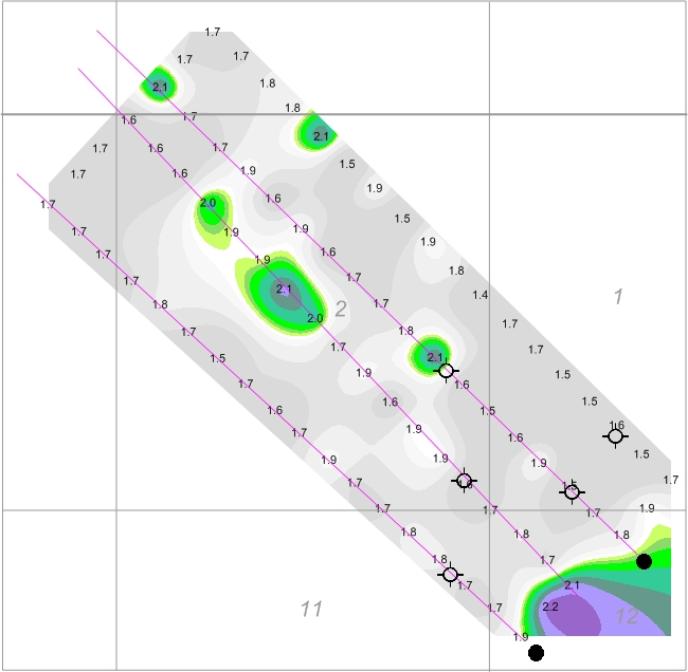

The Speaker Prospect well location, like East Bledsoe, has a small anomaly indicating a possible
show well. Again the dry hole did have a small show in the Morrow.
show well. Again the dry hole did have a small show in the Morrow.
Speaker Prospect Well Location
Seismic lines are indicated in purple.
